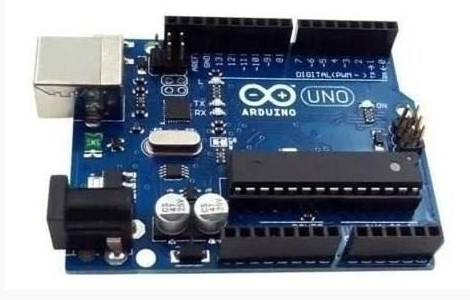

Placa Uno R3 Mega328p Atmega16u2
Placa Uno R3 Mega328p Atmega16u2
  • Load image into Gallery viewer, Placa Uno R3 Mega328p Atmega16u2
  • Load image into Gallery viewer, Placa Uno R3 Mega328p Atmega16u2

Placa Uno R3 Mega328p Atmega16u2

Regular price
€12,90
Sale price
€12,90
Regular price
Sold out
Unit price
per

Uno R3 Mega328p Atmega16u2 board made in Italy. USB cable not included Arduino is an open-source platform for electronic prototyping based on flexibility, with easy-to-use hardware and software. It is aimed at artists, designers, hobbyists, and anyone interested in creating interactive objects or environments. Specifications: Microcontroller ATMEGA16U2 ATmega328P Operating Voltage 5V Input Voltage (recommended) 7-12V Input Voltage (limits) 6-20V Digital I / O Pins 14 (of which 6 provide PWM output) Analog Input Pins 6 DC Current per I / O Pin 40 mA DC Current for 3.3V Pin 50 mA Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM 2 KB (ATmega328) EEPROM 1 KB (ATmega328) Clock Speed ​​16 MHz 1 Uno R3 Mega328p Atmega16u2 Italian Card. WARNING!!! Do not use a 12V power supply with this product or you will lose your warranty. Although arduino.cc recommends sources up to 12v, we have had reports from customers that their arduinos were damaged because of this. The atmega328p works on 5v uno boards, and to reduce the input voltage it uses a Voltage Regulator. Voltage regulators reduce the voltage by turning the surplus into heat, and if the power dissipated in it is too high the board will certainly BURN. We recommend the use of sources, preferably 5v nominal or, at most, up to 7.5V.
